OBSpy天然地震III

天然地震

OBSpy教程之Client

获取不同Client的url

from obspy.clients.fdsn import Client
c=Client(base_url="IRIS")
"""
base_url: Base URL of FDSN web service compatible server
(e.g. "http://service.iris.edu") or key string for recognized
server (one of 'BGR', 'EMSC', 'ETH', 'GEONET', 'GFZ', 'ICGC',
'INGV', 'IPGP', 'IRIS', 'ISC', 'KNMI', 'KOERI', 'LMU', 'NCEDC',
'NIEP', 'NOA', 'ODC', 'ORFEUS', 'RASPISHAKE', 'RESIF', 'SCEDC',
'TEXNET', 'UIB-NORSAR', 'USGS', 'USP').
"""
"""
   The list below get from 'Client(abbr).base_url', where abbr
   is the key string of server.
"""

Client_abbr	base_url
BGR	http://eida.bgr.de
EMSC	http://www.seismicportal.eu
ETH	http://eida.ethz.ch
GEONET	http://service.geonet.org.nz
GFZ	http://geofon.gfz-potsdam.de
ICGC	http://ws.icgc.cat
INGV	http://webservices.ingv.it
IPGP	http://ws.ipgp.fr
IRIS	http://service.iris.edu
ISC	http://isc-mirror.iris.washington.edu
KNMI	http://rdsa.knmi.nl
KOERI	http://eida.koeri.boun.edu.tr
LMU	http://erde.geophysik.uni-muenchen.de
NCEDC	http://service.ncedc.org
NIEP	http://eida-sc3.infp.ro
NOA	http://eida.gein.noa.gr
ODC	http://www.orfeus-eu.org
ORFEUS	http://www.orfeus-eu.org
RASPISHAKE	http://fdsnws.raspberryshakedata.com
RESIF	http://ws.resif.fr
SCEDC	http://service.scedc.caltech.edu
TEXNET	http://rtserve.beg.utexas.edu
UIB-NORSAR	http://eida.geo.uib.no
USGS	http://earthquake.usgs.gov
USP	http://sismo.iag.usp.br

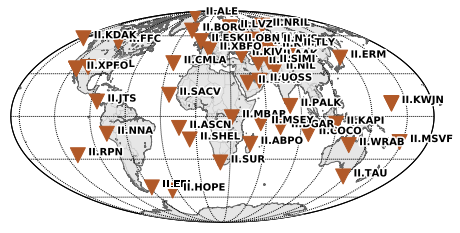

在地图上显示network中的台站位置

c = Client("IRIS")
cgt = c.get_stations(network="II")
cgt.plot()

根据日期获取指定台站数据并按天分割

当需要下载指定台站、指定日期范围内的地震数据时，可以使用以下代码。

import obspy
from obspy.clients.fdsn.mass_downloader import RectangularDomain, Restrictions, MassDownloader
from obspy import UTCDateTime

domain = RectangularDomain(minlatitude=-90,
                           maxlatitude=90,
                           minlongitude=-180,
                           maxlongitude=180)

restrictions = Restrictions(starttime=UTCDateTime(2020, 7, 20),
                            endtime=UTCDateTime(2020, 7, 22),
                            chunklength_in_sec=86400,
                            network="II",
                            station="KDAK",
                            location="*",
                            channel="*",
                            reject_channels_with_gaps=False,
                            minimum_length=0.0,
                            minimum_interstation_distance_in_m=100.0)
mdl = MassDownloader()# providers=["IRIS"]
mdl.download(domain,
             restrictions,
             mseed_storage="./data/KDAK/waveforms",
             stationxml_storage="./data/KDAK/stations")

以上代码中，下载了从starttime到endtime范围内，网络II、台站KDAK的所有通道数据，并将其截取为每个文件86400s长度（即一天）
